Ceiling Trap Doors & Ceiling Access Panel
These Greenpro, Ecolabel Type 1 certified ceiling trap doors can be customized to any size, up to 18×8 ft, and even more. Especially the large format architectural ceiling access panels system is unique as this system has been designed for multi-shutters which are reinforced to be warp-free, safe and strong and for any kind of shutter size. These shutters scan be embedded with many finishing material to match the false ceiling, like Gypsum or MR (Moisture resistant Gypsum board), ACP panel, WPC, PVC baords, laminate or veneer finishes and can be made into a louvered access panel also for partial visibility above false ceiling. These are multi-shutter solutions with proprietary sliding hinge, so all the shutters can collect to the sides, giving a big opening.
IQUBX ceiling trap doors & access panels are a byword in interiors industry in India. Having been used in almost all use-cases – hospitals, Clinics, Hotels, Restaurants, Universities, schools & colleges, Airports, Malls, Offices and Co-working spaces and in residential projects – villas, apartments and complete high rise residential projects and many other interior typologies.
Now we have rebranded our precision ceiling access systems under brand name of SKYHATCH, a sub-brand of IQUBX, to give better services across the country.
500+Projects Delivered | 18×8 ft Largest Size Made
Greenpro Type 1 Ecolabel (IGBC / CII) | Page 1 Organic Google search engine ranking
Economic Times Emerging Consumer Brand | Made in India · Designed for the World
What is a Ceiling Trap Door / Ceiling Access Panel?

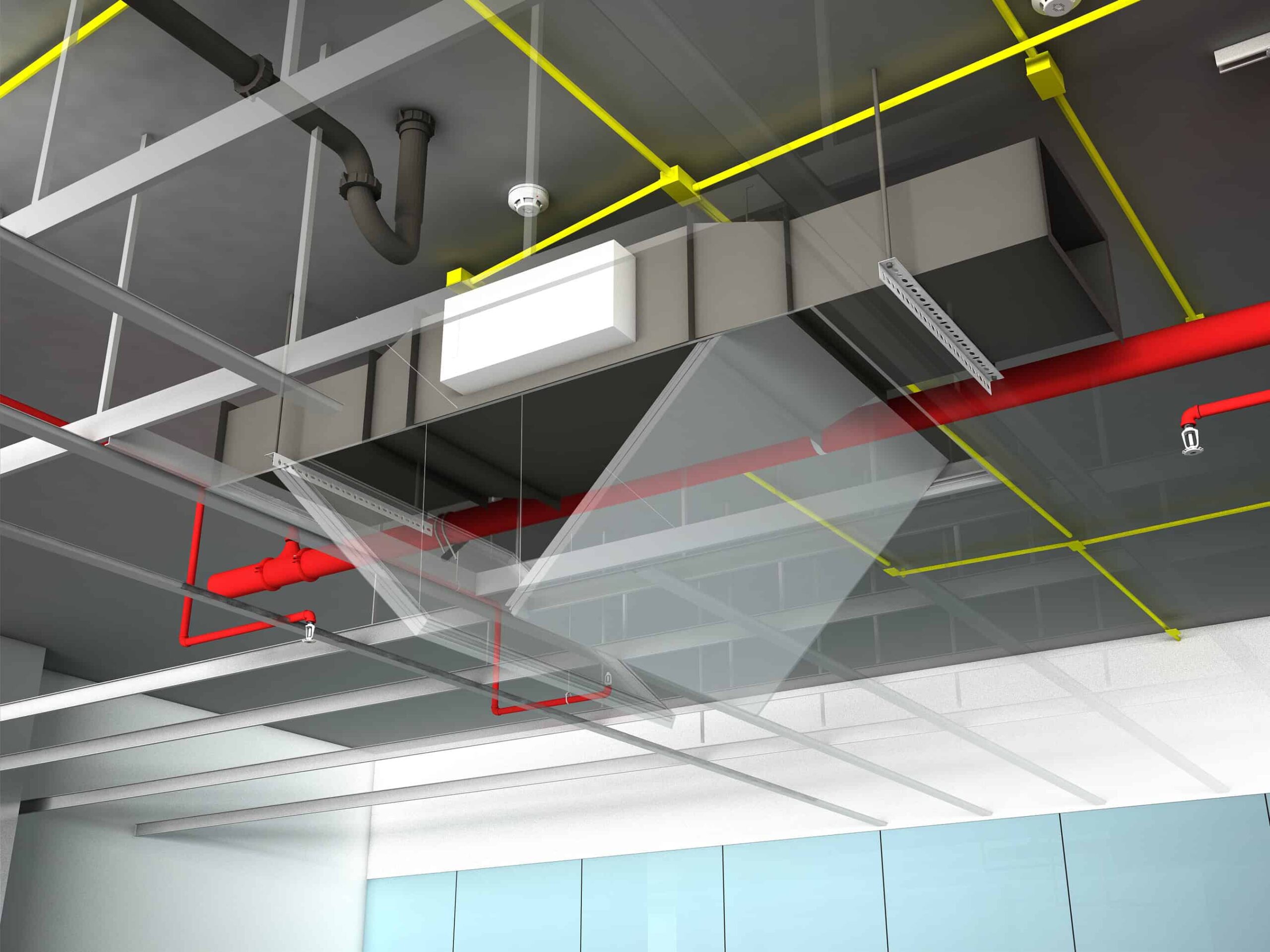

MEP services above false ceiling accessed by ceiling access panel
In every modern commercial or residential building, a dense network of critical MEP (Mechanical, Engineering and Plumbing) services is hidden above the false ceiling.
Services Hidden Above Your False Ceiling
A Ceiling trap door is used in false ceilings to access these critical equipment and services for maintenance, repairs and replacement. This ceiling access device needs to be sturdy and easily operable and of appropriate size.
Thus, a ceiling trap door — also called a ceiling access panel, ceiling access hatch, ceiling door, or aluminium inspection panel — is an openable panel installed in a false ceiling that allows maintenance access to the services concealed above it.
Thus a good, strong, customized size ceiling access panel system is indispensable for any contemporary interior.
The Problem
Why Existing Ceiling Access Panel Trap Doors Fail
Every building has a ceiling trap door. Most of them are failures within 2 years.
With hardly any options in market, ceiling trap door is usually constructed with wooden or aluminium tubes, and is an eyesore, spoiling the look of the interiors. Over time, the shutters tend to sag and chip off as well.

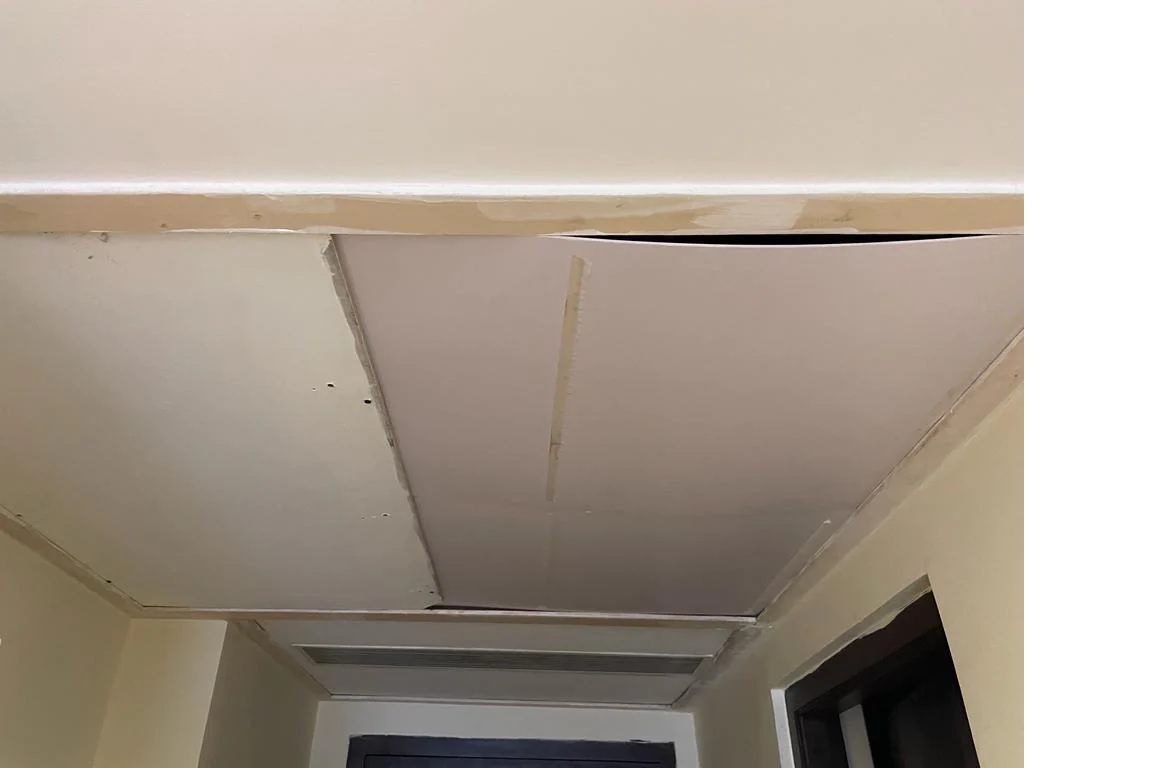

❌ Locally Fabricated Wooden Trapdoors
- Warp, swell & misalign within 1–2 years
- Paint cracks, edges chip
- Visible framing, usually
- Large shutters bend
- Deteriorate faster in humid climates
❌ T-Profile Grid Ceiling Boards
- Unprofessional, exposed grid look
- Cannot carry large-format sizes
- Unsuitable for gypsum or POP ceilings
- Access disturbs the alignment of rest of grid ceiling
- Boards sag or pop out
❌ Standard Modular Aluminium TrapDoors
- Only fixed sizes: 300×300, 450×450, 600×600 mm
- Same design from every brand globally
- not designed for large sizes – Bend and warp in larger formats
- No customization of sizes for less quantity orders, limited size customization even for high volume
- Cannot accommodate diverse ceiling finish materials
The biggest gap in the market
When architects or contractors need a large ceiling trap door and that too with customized sizes- for access for HVAC machines, repair and replacement, multiple services in concentrated areas in service intensive interiors, which almost every contemporary interior has become, say 2400×1200 mm or 4500×1800 mm – no professional modular product solution exists except IQUBX, now branded as Skyhatch – one that can be customized to sizes even for a very small quantity order and one which can be delivered for any super big size. They are forced to either use wooden trapdoors (which fail fast) or custom-fabricate something that looks terrible.
A ceiling trap door in a false ceiling (whether gypsum board, POP, wooden etc) should provide a neat, lockable, finish-matched access opening that blends invisibly with the ceiling when closed, and is of appropriate big size, and if possible customized size, to allow full access for operation, maintaining, repair and replacement of machines & equipment, pipes, valves. ducts etc related to embedded services like HVAC (Heating, ventilation & air-conditioning), plumbing – water supply and drainage, fire detection and fighting – smoke and heat detectors above ceiling, sprinklers above ceiling, fire pipes and valves, electrical wire and cabling, data and telecom cables, lighting circuits and more.
The Solution
SkyHatch by IQUBX
Precision Ceiling Access Systems — engineered for demanding buildings
skyhatch by iqubx – precision engineered ceiling access panels
SkyHatch is IQUBX’s dedicated sub-brand for ceiling trap doors and ceiling access panels — built for architects, interior designers, facility managers, and contractors who refuse to compromise on quality, aesthetics, or access.

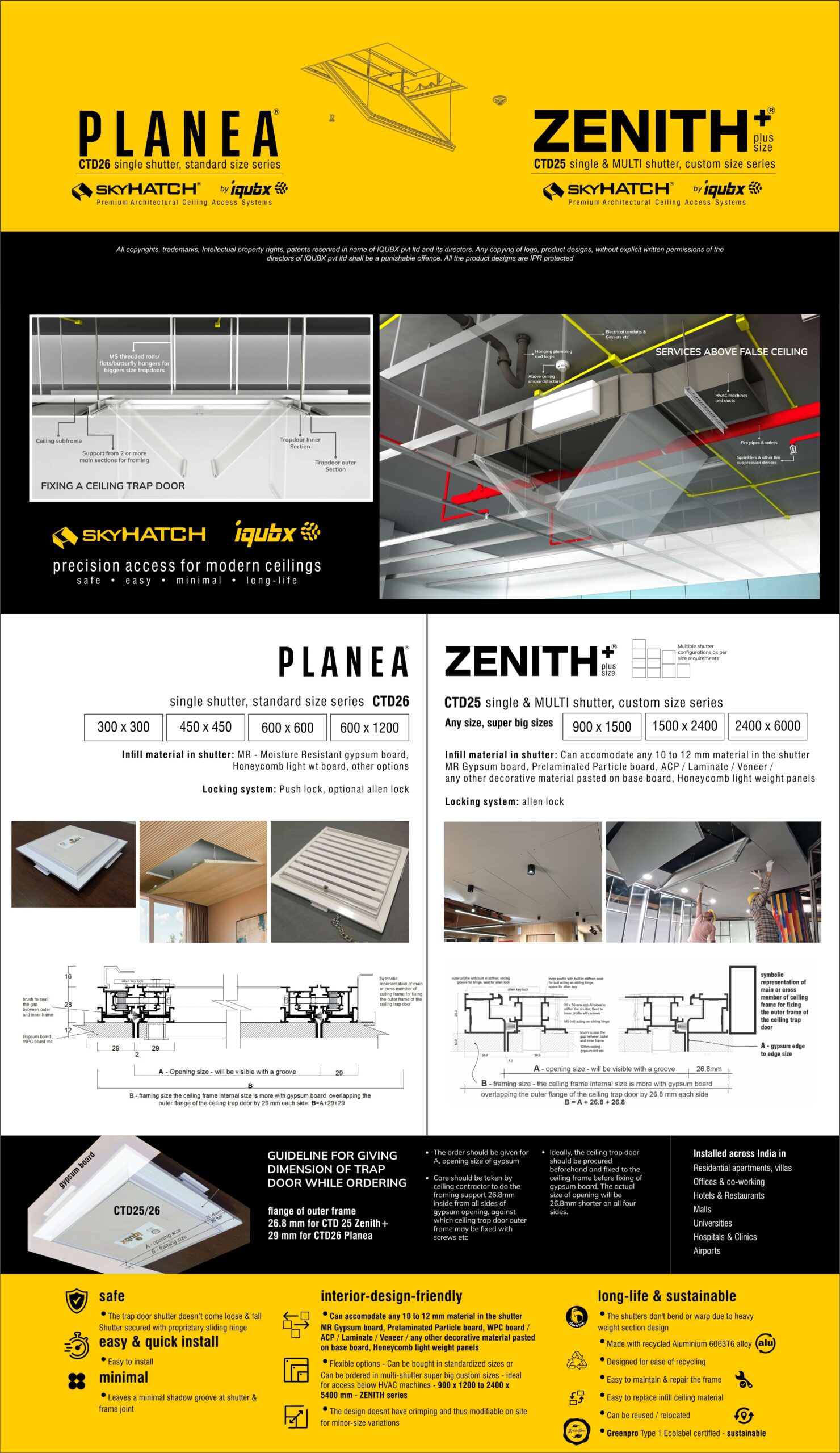

planea and zenith+ series
Our Products
SkyHatch Ceiling Trap Door Models
Two precision-engineered models to cover every ceiling type, size requirement, and performance specification.
CTD025 – Large Format, State-of-Art
This innovative system is a strong and sturdy innovative system which is engineered to allow big size shutters and outer frames with provision for extra reinforcements and has been used for our Zenith+ Series. This system allows assembly of inner and outer frames with brackets and cleats without any need for crimping, thus allowing custom manufacturing and even onsite repair and modification. The section has been engineered for load bearing and has in-built sliding hinge mechanism allowing the shutters to be slided to one or both sides and leaving an obstruction free big opening in the ceiling to allow access.
The system is designed to take additional reinforcements with aluminium tube sections for extra big and heavier shutters, to prevent any warping or bending.
Due to big size, It comes with proprietary iqubx allen cam lock solution made from extruded aluminium and steel instead of conventional brass locks, which tend to fail in high load conditions. Another innovative feature is the specially designed allen lock cam lever bracket, which doesnt allow the shutter to be raised inside, keeping it locked in position with only a minor movement.

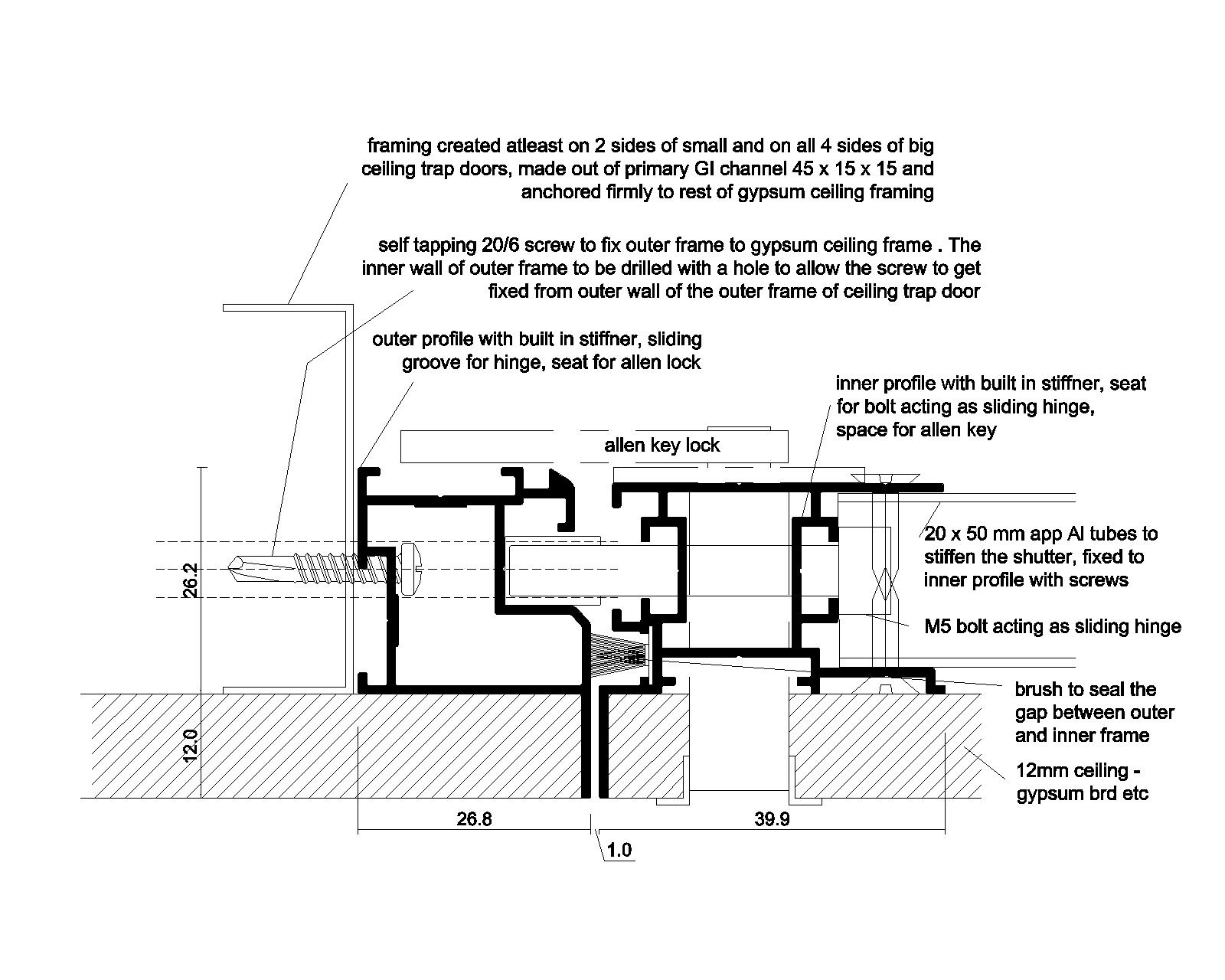

CTD025 heavy duty multishutter modular trapdoor system for customized large format ceiling access

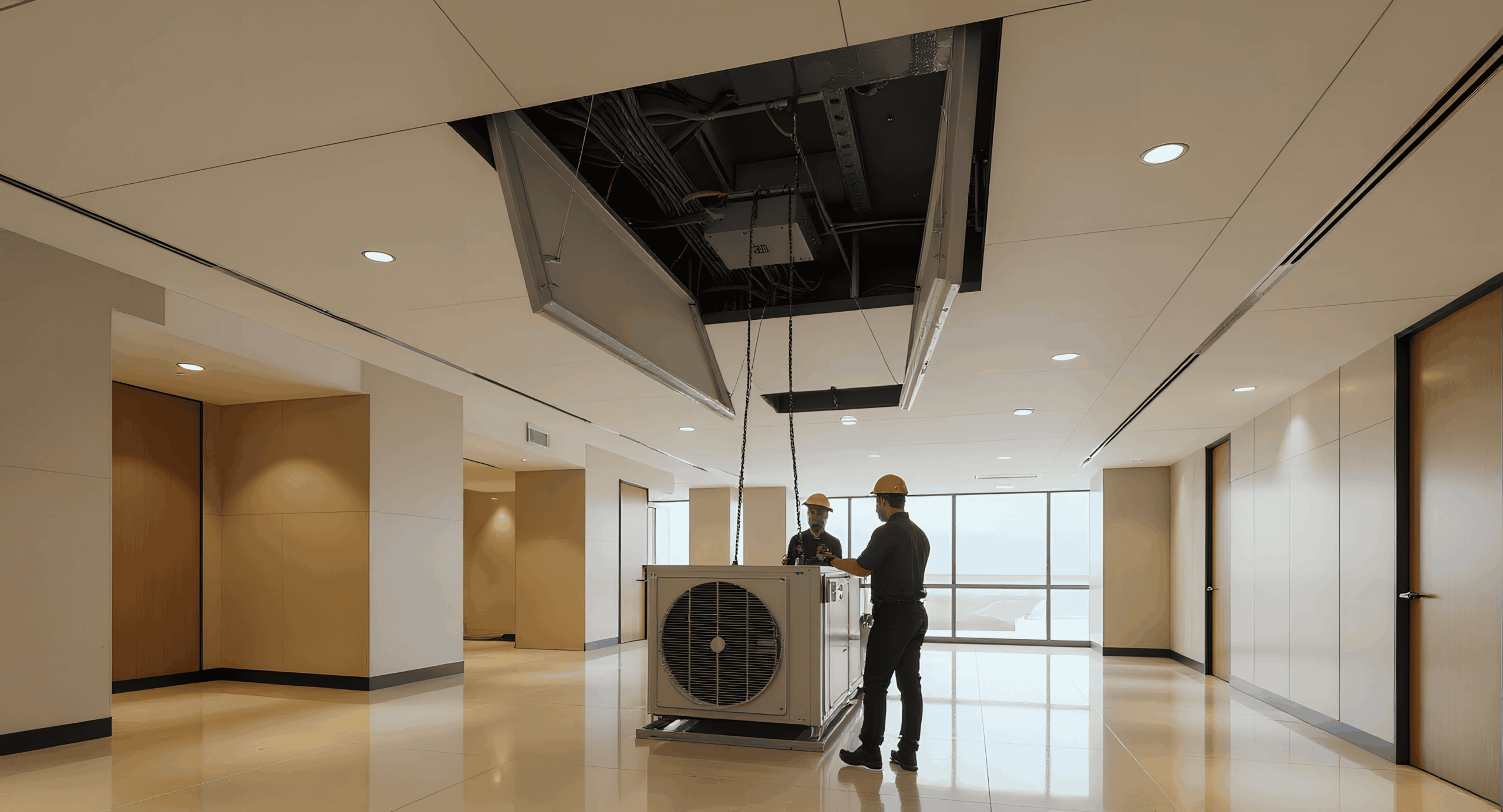

large format premium ceiling access solutions for servicing, repair and replacement of embedded services
Technical specs
Proprietary design
CTD026 – Lean Format, single / double shutter, State-of-Art
This innovative system is designed for small size single shutter, or at the most double shutter access panel system with leaner sections for taking limited load. However its safety features and innovative sliding hinge which locks in the shutter to prevent it from disengaging or falling down is unique and unparalleled. It is strong and sturdy and has been used for our Planea Series – standard sizes offerings. This system allows assembly of inner and outer frames with brackets and cleats without any need for crimping, thus allowing custom manufacturing (only if required on special custom orders) and even onsite repair and modification. As a standard, it comes with push lock but can be ordered with safer and load-bearing iqubx allen cam locks.
lean format for standard and small custom size ceiling access solutions PLANEA series by skyhatch iqubx

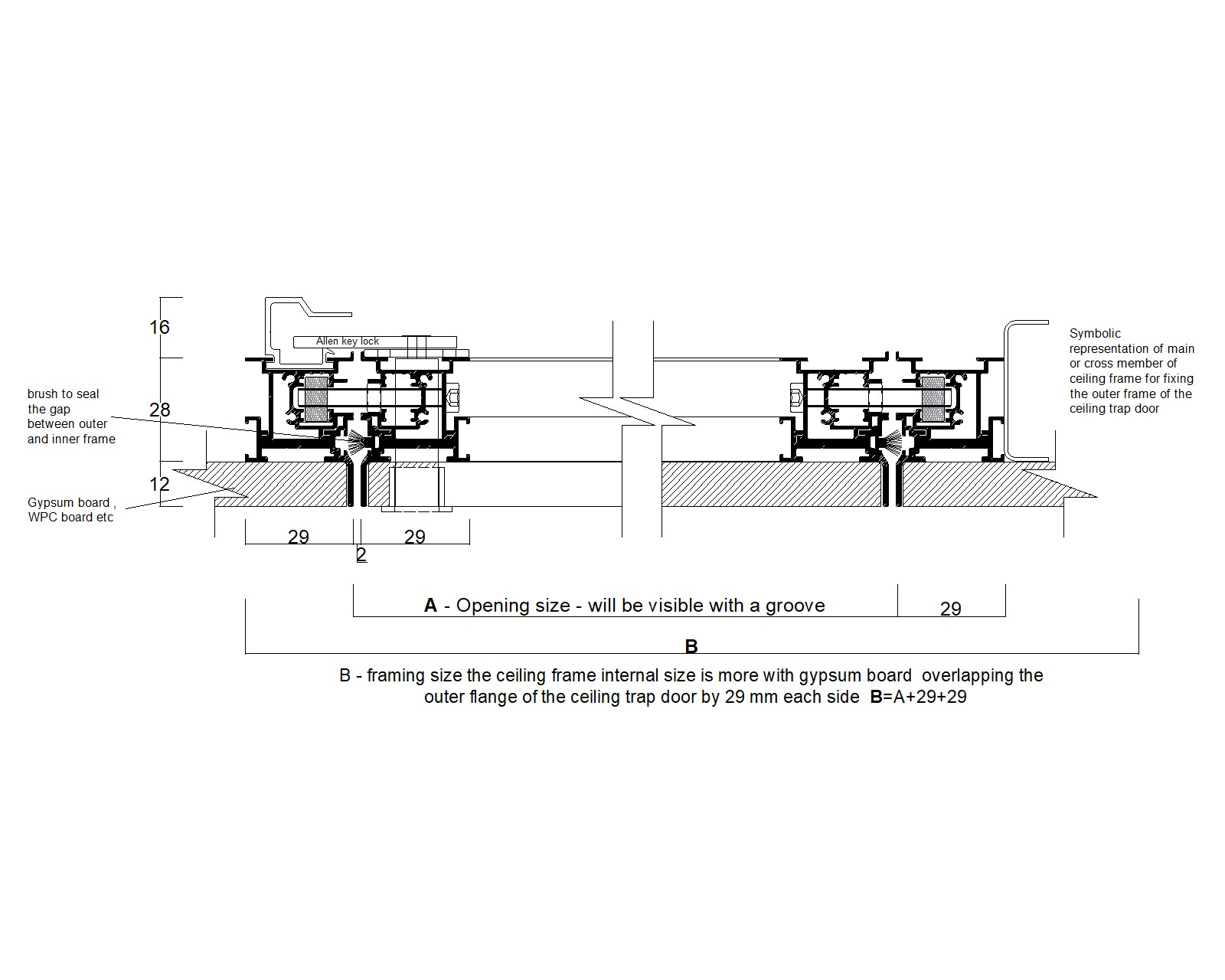

CTD 26 lean modular trap door system
Why SkyHatch Wins – 9 Reasons SkyHatch is India’s #1 Ceiling Trap Door
No other ceiling access panel brand in India — or possibly, in the world — offers this combination of features.
📐 Any Custom Size. No MOQ.
Order 1 piece or 10,000 pieces. Any odd size — 467×1937 mm, 3000×1500 mm — fabricated to exact dimension with minimum TAT. No standard size restrictions, ever.
🏗️ Ultra Large Format — Up to 18×8 ft
Largest ceiling trap door delivered: 5500×2400 mm (18×8 ft). Multi-shutter design allows complete barrier-free opening — shutters slide to one side for full, unobstructed access.
🔩 Patented Sliding Hinge — Warp-Free
Proprietary M5/M6 bolt acts as a sliding hinge inside an extruded aluminum channel. Shutters cannot fall, cannot warp or bend — even at 18-ft span. No other brand has this innovative engineering.
🎨 Invisible When Closed — 2–3 mm Groove Only
Only 2–3 mm visible groove between frames. Accepts any 12mm ceiling material — gypsum, ACP, laminate, PVC, WPC, MR board, calcium silicate. Perfectly flush with ceiling finish.
🌿 India’s Only Greenpro Certified Ceiling Trap Door
Type 1 Ecolabel from IGBC (CII body). Made from recycled 6063 T6 aluminium alloy — 10% pre-consumer, 90% post-consumer. Contributes to LEED / IGBC / GRIHA green building credits.
🔐 Built-In Security — Allen Key & Push Locks
Allen key lock system on all models. Steel wire rope retention prevents accidental shutter fall. Push locks available for smaller sizes. Complete safety by design.
🔊 Acoustic Models Available
CTD024A features acoustic rubber gasket sealing the groove completely — reduces noise transmission from above-ceiling HVAC equipment. Ideal for hospitals, boardrooms, recording studios. More designs being launched to take care of specific industry requirements
🔄 Modifiable On-Site & Retrofittable
SkyHatch frames can be trimmed or adjusted on-site in case of slight dimension mismatch during installation. Can also be retrofitted into existing ceiling openings replacing old wooden trapdoors.
⚡Fast Turn around, Global Supply
Quick TAT on custom orders. Supplied across India, UAE, Oman, Bahrain, Dubai, Nepal, Maldives, and Canada. 20+ authorized distributors. Designed and made by IQUBX with 100+ design registrations and multiple granted patents.
📍 The Skyhatch Positioning Promise:
“Precision ceiling access systems enabling safe, large-format, warp-free access for service-intensive buildings with dense MEP infrastructure.”
Available Ceiling Infill Materials (12mm)
While the standard size single shutter Planea series comes with MR board, but can be replaced with custom material on site, the Zenith+ custom size and large format mutishutter access system can be installed with variety of finishes as per requirements and can even be supplied only as a frame (assembled or knocked-down in case of extra large sizes).Similarly, we offer our trapdoors in RAL 9010, slightly off-white, we can also offer our ceiling access panels framing in other RAL shades on demand.Various materials and finishes which can be embedded in our trap doors are any 11 to 12 mm materials like
- Gypsum Board
- MR Board (Moisture – resistant Gypsum board)
- Calcium Silicate Board
- ACP Sheet
- PVC / WPC boards
- MPC Board
- Prelaminated Board
- Painted MDF / Plywood
- Louvered Aluminium
- Veneer on WPC
- Laminate Finish
Comparison
SkyHatch vs. Other Ceiling Access Panel Solutions
| Feature | Wooden / DIY | Standard Modular Brands | ☑ SkyHatch by IQUBX |
|---|---|---|---|
| Custom sizes available | ✗ No | ✗ Fixed sizes only | ✓ Any size, no MOQ |
| Large format (>1200mm) | ✗ Fails structurally | ✗ Not available | ✓ Up to 18×8 ft |
| Warp / bending resistance | ✗ Warps in 1–2 yrs | ✗ Bends at large sizes | ✓ Patented, warp-free |
| Matches ceiling finish | ✗ Paint only | ✗ White powder coat only | ✓ Any 12mm ceiling material |
| Groove visibility | ✗ Large, unsightly gap | ✗ 5–8mm+ gap | ✓ Only 2–3 mm |
| Greenpro / LEED certification | ✗ None | ✗ None | ✓ India’s only Greenpro CTD |
| Safety — shutter fall prevention | ✗ None | ⚠ Chain only | ✓ Patented sliding hinge + SS wire |
| Acoustic model available | ✗ No | ✗ No | ✓ CTD024A with rubber gasket |
| Retrofittable into existing opening | ✗ Hard | ⚠ Sometimes | ✓ Yes — all models |
| Patents / IP protection | ✗ None | ✗ None | ✓ 3 patents + 100+ design reg. |

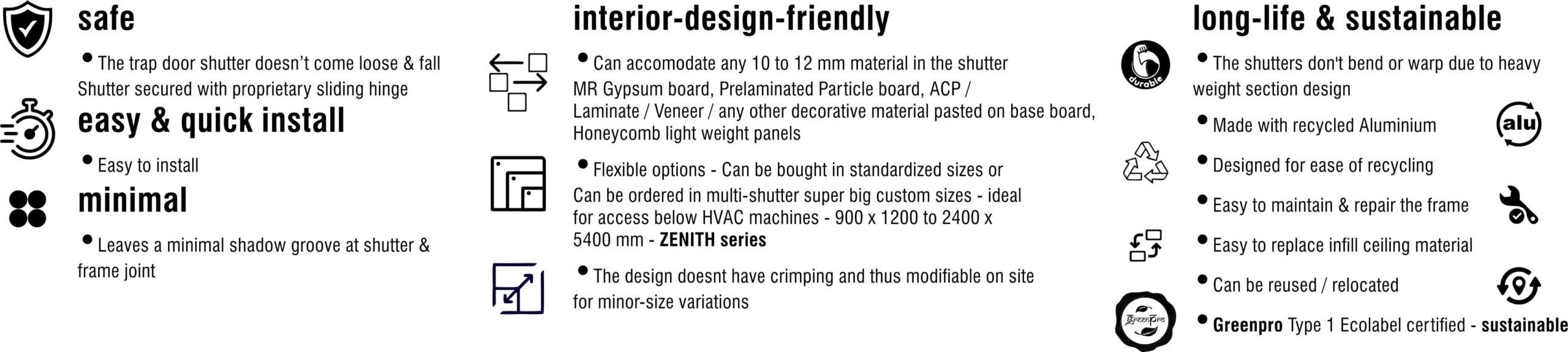

advanced engineered skyhatch by iqubx professioanl ceiling access solutions – USP – benefits & features
Applications
Where Are Ceiling Trap Doors Used?
SkyHatch ceiling access panels are specified and installed across India’s most demanding project types.
Hospitals & Healthcare
Critical access to HVAC, fire suppression, medical gas pipes. Clients: Fortis, KIMS, Maharaja Agrasen, Apollo, Max Healthcare

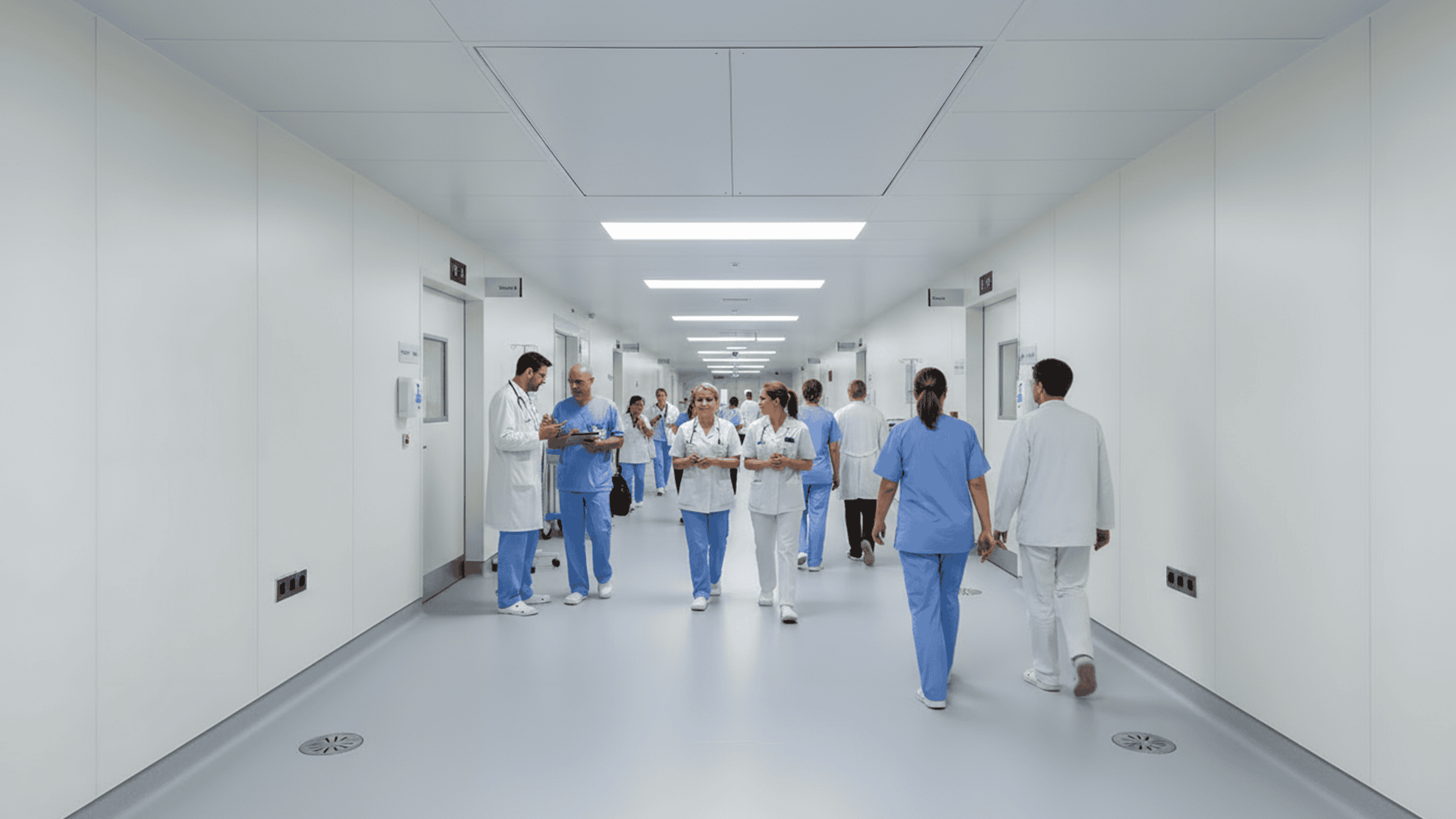

skyhatch by iqubx precision ceiling access panel ceiling trap doors for hospitals – healthcare
✈️
Airports & Transport Hubs
Large-format access for complex MEP systems. Clients: GMR Group, Sealdah Metro (Kolkata Metro)

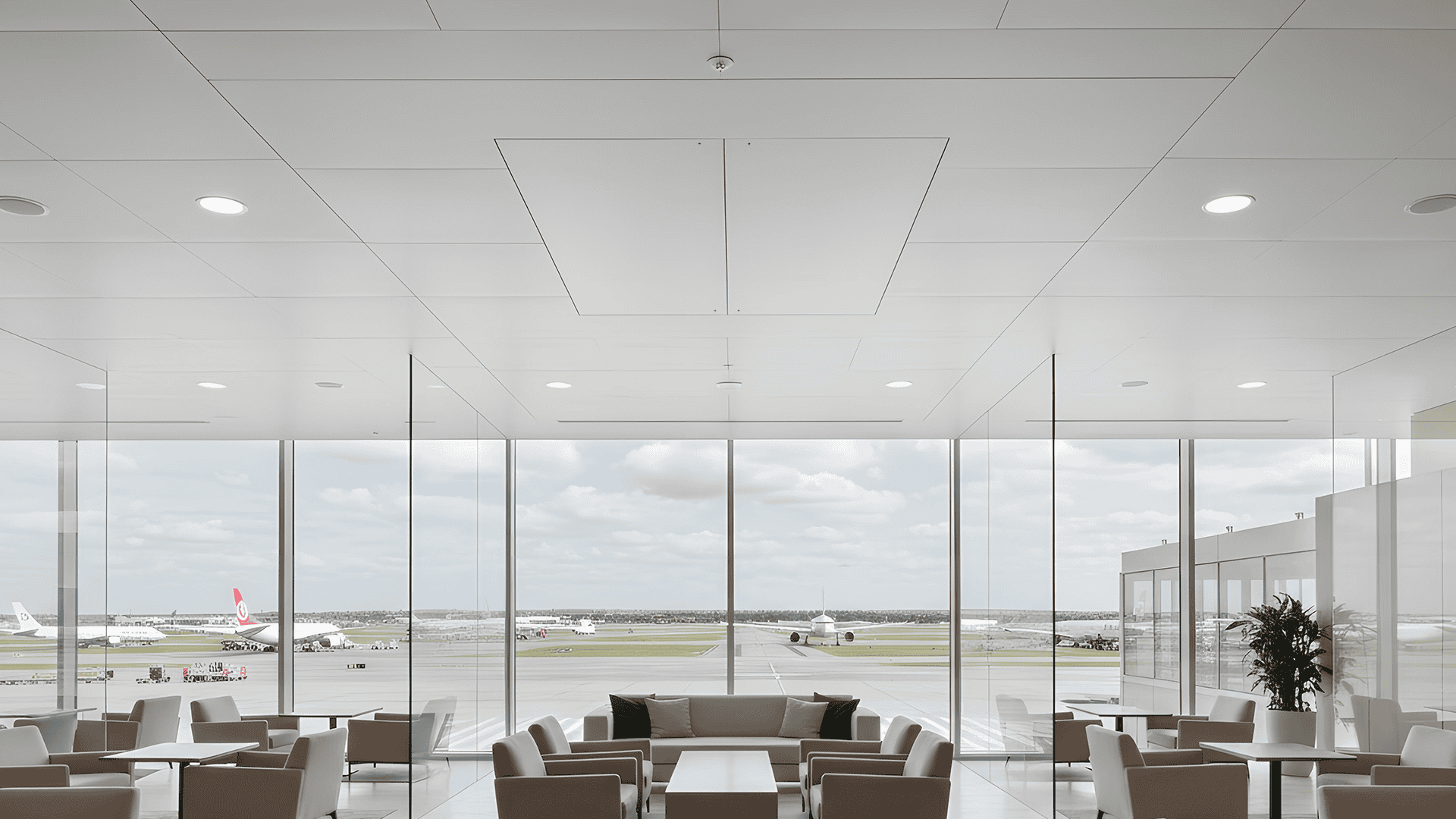

skyhatch by iqubx precision ceiling access panel ceiling trap doors for airports & transport hubs – service intensive infra
🏨
Hotels & Hospitality
Aesthetically critical — must blend with premium interiors. Clients: Hyatt, ITC, Pacifica Hotels
skyhatch by iqubx precision ceiling access panel ceiling trap doors for hotels and resorts – service intensive infra
🏢
Offices & Commercial
High ceiling heights, large MEP infrastructure. Clients: Tech Mahindra, Deutsche Bank, RBL Bank, Amazon
Malls & Retail
Large span ceilings, multiple access points. Clients: DLF Mall of India, DLF Promenade, Ambience Mall, Wave One
Residential Towers & Villas

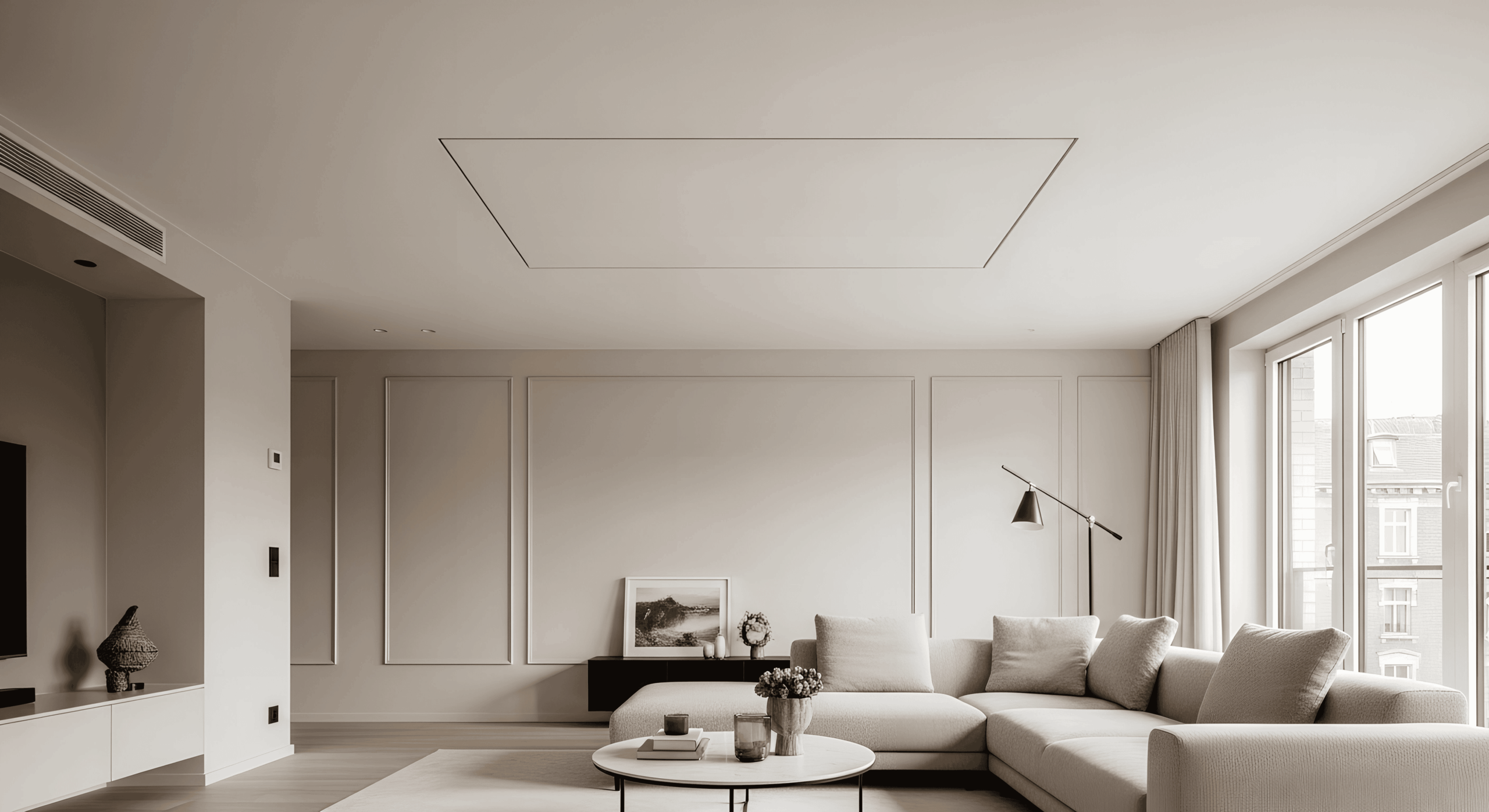

skyhatch by iqubx precision ceiling access panel ceiling trap doors for residence villas & apartments
Gypsum and POP ceilings, AC traps. Clients: Emaar, Krisumi, DLF Camellias, BPTP, Kajaria
Universities & Institutions
Large buildings with extensive services. Clients: Galgotias University, IIT Jodhpur
Industrial & Infra
Heavy-duty access requirements. Clients: Reliance Industries, GMR, ONGC, Indian Oil, DMRC
How It Works
How to Order Your Custom Ceiling Trap Door
Getting a SkyHatch ceiling access panel is simple. Here’s the process:
Share Opening Size
Provide gypsum opening size (A dimension). Framing size = A + 26.8 + 26.8 mm each side.
Choose Model & Finish
Select CTD023, 024, 024A or 025. Choose ceiling infill material and powder coat colour.
Confirm & Advance
70% advance payment confirms production. Fast TAT on all custom orders.
Fabrication
Precision-cut extruded aluminium frames assembled, finished & quality checked at our Delhi plant.
Delivery & Install
Pan-India delivery via distributors. Fix outer frame before gypsum boarding. Easy site installation.
🔑 Pro Tip — Installation Sequence:
Ideally, procure and fix the SkyHatch outer frame before fixing gypsum boards. The actual visible opening will be 26.8 mm shorter on all four sides than the gypsum opening size. Pre-fix framing support 26.8 mm inside from all sides of the gypsum opening for the outer frame to sit on.
Trusted By India’s Best
500+ Projects. India’s Most Trusted Ceiling Access Brand.
SkyHatch by IQUBX is specified by leading architects and used by India’s most prestigious builders, hospitals, hotels, and infrastructure developers.
Also specified in major government tenders: Galgotia University, Rail Vikas Nigam (RVNL), ONGC Maharashtra, IOCL Faridabad, IIT Jodhpur, Qatar Tax Authority, Mashraq Bank UAE.
Credentials
Certifications, Patents & Awards
Greenpro Type 1 Ecolabel
Certified by IGBC (Indian Green Building Council), a CII body. 80+ certificates — highest for any interior products brand in India.
3 Patents + 2 Pending
Patented sliding hinge mechanism, shutter design, and frame profiles. 100+ design registrations. All IPR held by IQUBX Pvt Ltd.
Economic Times Award
Recognised as an Emerging Consumer Brand by The Economic Times — India’s leading financial publication.
Make in India · Google Page 1
Designed in India, exported globally. Organic Page 1 Google ranking for “ceiling trap door” and multiple related keywords.
FAQs
Frequently Asked Questions — Ceiling Trap Doors & Access Panels
Everything you need to know before specifying or ordering a ceiling access panel.
Complete Range
India’s Most Comprehensive Ceiling Access System Range
SkyHatch by IQUBX is your single source for every type of ceiling access product. Whether you are searching for a ceiling trap door, a ceiling access panel, a false ceiling trap door, an aluminium inspection panel, a gypsum access panel, an AC trap door, an acoustic access panel, or a large-format ceiling access system — we have the right engineered product for your project.
Ceiling Access Panel
False Ceiling Trap Door
Trap Door in False Ceiling
Aluminium Inspection Panel
Ceiling Door
Access Door
Access Ceiling Hatch
Trap Door in Ceiling
Trap Door in Gypsum Ceiling
Gypsum Access Panel
Acoustic Access Panel
Gypsum Board Ceiling Access Panel
AC Trap Door
Gypsum Trapdoor
Ceiling Trap Door Detail
False Ceiling Trap Door Detail
Ceiling Trap Door Sizes
Ceiling Trap Door Lock
Ceiling Trap Door Design
Trap Door in False Ceiling Price
Ceiling Trapdoor System
Architectural Ceiling Access System
Aluminium Ceiling Trap Door
Aluminium Access Panel for Ceilings
Ceiling Access Doors of Metal
Motorized Ceiling Trap Door
Large Format Ceiling Access Panel
Custom Size Ceiling Trap Door
Get In Touch
Ready to Specify SkyHatch for Your Project?
India’s most trusted ceiling trap door brand is ready to engineer the perfect solution for your building. Talk to our team today.
